Hitron's APEX2008 LEDs Explained

APEX2008 LEDs Explained

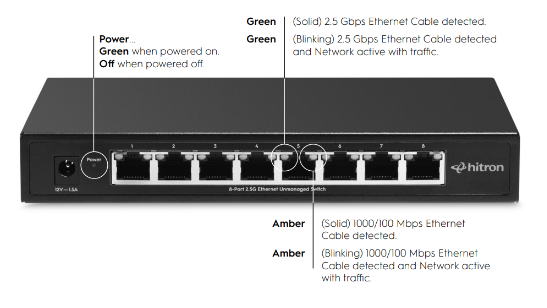

Power LED

  1. Green (Solid): Switch is powered on
  2. Off: Switch is not receiving power

Ethernet Port LEDs

  1. Green (Solid): 2.5 Gbps Ethernet cable detected
  2. Green (Blinking): 2.5 Gbps connection with network activity
  3. Amber (Solid): 1000 / 100 Mbps Ethernet cable detected
  4. Amber (Blinking): 1000 / 100 Mbps connection with network activity
Blinking LEDs indicate active data traffic.
