How do I connect my HTEM4 MoCA adapter to my router?

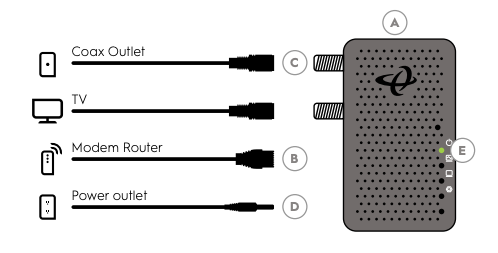

A. Get a MoCA 2.5 Network Adapter and Ethernet Cable.
B. Connect the Ethernet Cable from the Modem/Router to the
MoCA 2.5 Network Adapter.
C. Get the Coax Cable and connect the Coax Cable from the
Coax Outlet on the wall to the Top Coax Port on the MoCA 2.5
Network Adapter.
Note: If you have a TV or cable set top box near your modem/router,
connect a coax cable from the 2nd Coax port marked TV to the TV or
set top box.
D. Get the Power Adapter (External, 12V DC, 1A, made by AOEM,
Model #ADSO12T-W120100) and connect it from the MoCA 2.5
Network Adapter to a Power Outlet.
E. Wait until the Power Light on the front of the adapter is GREEN.
