How to connect your CODA Cable Modem to your Router

Note: During the installation and activation, you must connect the cable modem directly to a computer. But after installation and activation, you can connect the cable modem to a router.

To connect your cable modem to a router after installation and activation:

1. Reboot your cable modem by unplugging the power cable from the cable modem and plugging it back in.



   Note: Do not disconnect your cable modem from the cable wall outlet.


   When the start-up procedure is completed, the Power LED will turn solid green. This may take a few minutes to stop blinking and light solid green.

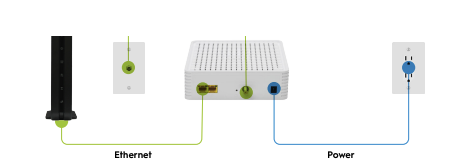

2. Use an Ethernet cable to connect the Ethernet port on your cable modem to the WAN or Internet port on your router.


3. Power on the router.
   Wait until the router is ready (check your router’s instruction manual to determine when its ready).


4. Connect a computer to the router over a WiFi connection or with an Ethernet cable to a LAN port on the router.
