Connecting Additional HTEM4 Adapters

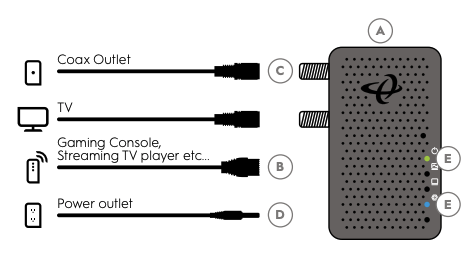

1. Get a MoCA 2.5 Network Adapter and Ethernet Cable.

2. Connect the Ethernet Cable from the Access Point or Device (gaming console, streaming TV player, laptop etc.) to the MoCA 2.5 Network Adapter.

3. Get the Coax Cable and connect the Coax Cable from the Coax Outlet on the wall to the Top Coax Port on the MoCA 2.5 Network Adapter.

4. Get the Power Adapter and connect it from the MoCA 2.5 Network Adapter to a Power Outlet.

5. Wait until the Power Light on the front of the adapter is GREEN and the MoCA light turns GREEN or BLUE.


Note: The MoCA light will turn Green when the MoCA network is in low speed.
